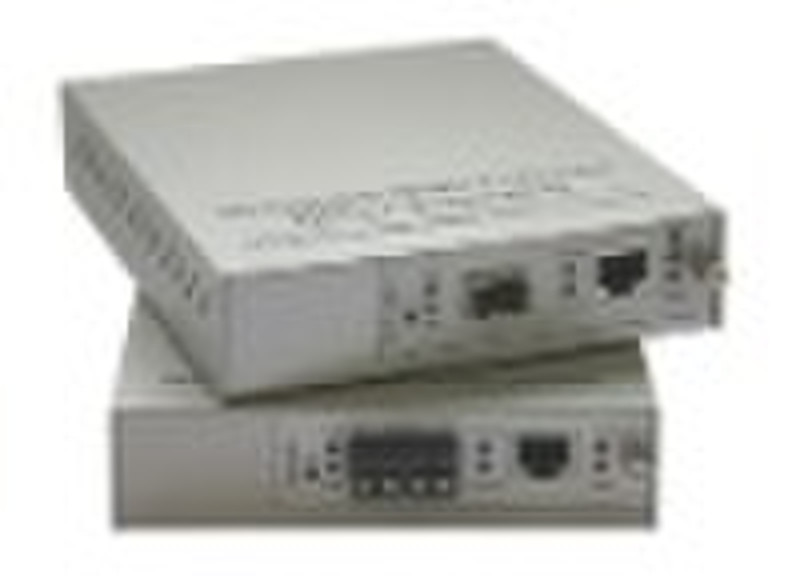

One TO One Manageable Media Converter

Manageable media converter Built-in IP-based Web Interface. Supporting remote and local management. Supporling IEEEE 802.3X Frame Flow Control for Full-Duplex mode. Store and Forward mechanism. Manual IP address setting/DHCP client for IP address assignment. SNMP v1 / v2c monitor / private Enterprise MIB. Event trap and SNMP trap support. Speed duplex mode configuration / Flow Control setting / bandwidth Control on TP / Fiber port. Supports Port Status / Ethernet Statistics on both TP and Fiber intertace. Supports Maximum frame size to 16K bytes. Loop detection / Broadcast / Multicast / Unicast storm control. Management VLAN / 16 IEEE 802.1Q VLAN groups / Q-in-Q VLAN. 802.1p Tag Priority / IP address priority / IP DSCP option in. Quality of Service Mode and Strict Priority / Weighted Round Robin (WRR) QoS policies. TS-1000 OAM / IEEE 802.3ah OAM / Loop Back Test. 16 TCP / UDP Filter groups. Password setting, IP setting and devices description setting through Planet Smart discovery utility. Firmware upgrade via remote Web interface. LED indicators for easy network diagnosing. Reset Button at the front panel for the factory default reset. Choice of fiber-connector from SC, LC, WDM, multi-mode / single-mode fiber /1000Base-SX / LX mini GBIC module.
